WM-SGM150 EMF Protection Fabric

WM-SGM150 is a compact cotton/polyester/stainless-steel fabric for HF+LF shielding. Typical application as curtain, floor mat, blanket, to incorporate in furniture (beds), room dividers, or with reservations as low priced clothing or bedding.

• Good screening attenuation, even at high frequencies!
• Excellent cost/performance ratio
• Contactable (groundable) to shield LF electric fields
• Textile characteristics: Washable, easy to iron and process
• Quality grade: Very high

Technical data

• Width: 150 cm, +/- 2 cm
• Length: Available by the foot
• Attenuation: 42 dB, two-layer 57 dB
• Color: Gray
• Raw materials: 40 % cotton, 30 % polyester, 30 % stainless steel
• Weight: 120 g/m²
• Dimension stability: +/- 3 %
• Surface conductivity: 100-800 ohm (square resistance)

Order quantity: This product is cut off according to your specifications, a return or revocation is not possible.

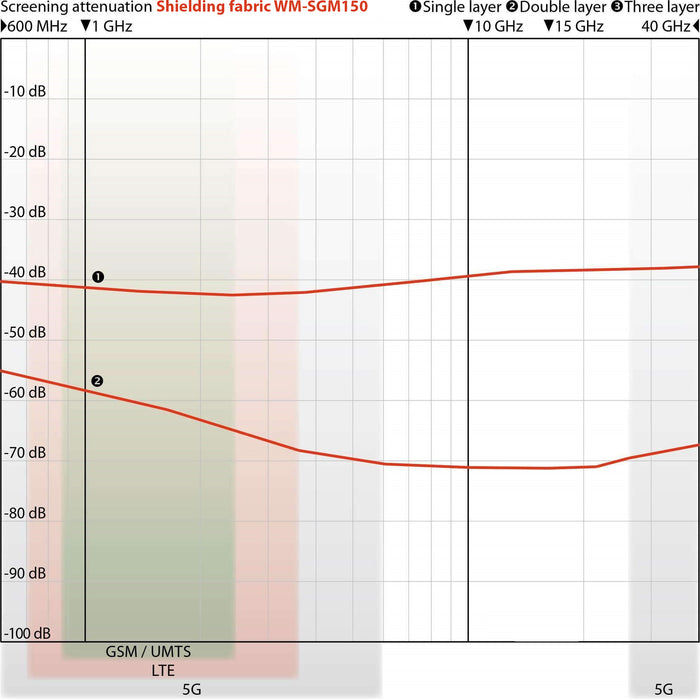

Screening attenuation: All stated attenuation values apply at 1 Ghz. Measurement to ASTM D4935-10 or IEEE Std 299-2006 or IEEEE Std 1128-1998 or ASTM A698/A698M-07. You find the test report above under "Report screening attenuation".

Grounding: Electrically conductive. Can be contacted and grounded to shield electric fields (LF). We recommend a plug GP or GD, with a plate GM or GS, plus a cable GC.

Fabric care: Washing at gentle cycle 30°C | Ironing without steam at degree 1 | No drying in tumble dryers | No bleaching | No chemical dry-cleaning | For allergy sufferers: Every new fabric smells, wash before its first usage!

Fabric quality: We only sell top quality fabrics! However, due to the high production costs and in favor of a reasonable retail price, tiny defects (e.g. a flaw in weaving) are no reason for complaint. We appreciate your understanding.

Application: Window, Curtain, Textile products, Earthing

Field type: HF (High frequency electromagnetic fields), LF (Low frequency alternating electrical fields)

Ecology: Normal

Color: Gray
